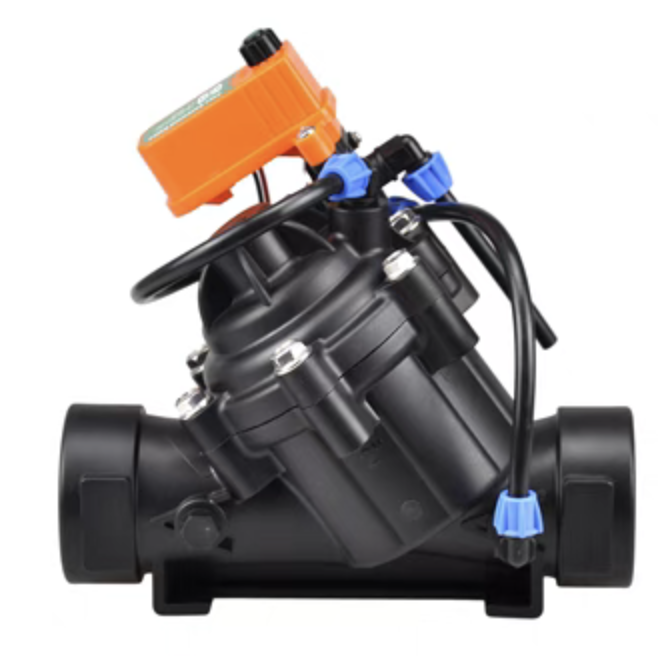

YL-0F灌溉電磁閥

Y型電磁開關閥Y Type Control Valve with Solenoid Valve:

·   由Y型主閥和電磁頭組成控制開關閥，電信號遠程控制開啟或關閉。

·規格：2*(Dn50),3”(Dn80),4*(Dn100)

·電磁頭電壓：24V交(直)流/12V直流脈沖

·電磁閥類型：常閉/常開，三路兩通

·連接方式：內螺紋/法蘭

·型號:E24HV0150B/N、E24HV0180B/N/F、E24HV01100F、E12HV0150B/N、E12HV0180B/N/F、E12HV01100F

·Installed with Y Type main valve and solenoid to be open/close contro lling valve,distance operation by electrical signal.

·Size:2"(Dn50),3"(Dn80),4"(Dn100).

·Electric Voltage:24VAC(DC)/12VDC Latching

·Valve Type:NC (Normally Closed)/NO (Normally Open),with 3 position 2 wayConnection:Threaded /Flange.
